This laser cut and CNC bent plate is fabricated from American Made 12 gauge 316 stainless steel. Made for 2016-2023 Toyota Tacoma, this fuse plate fits all models and has a two fastener install.

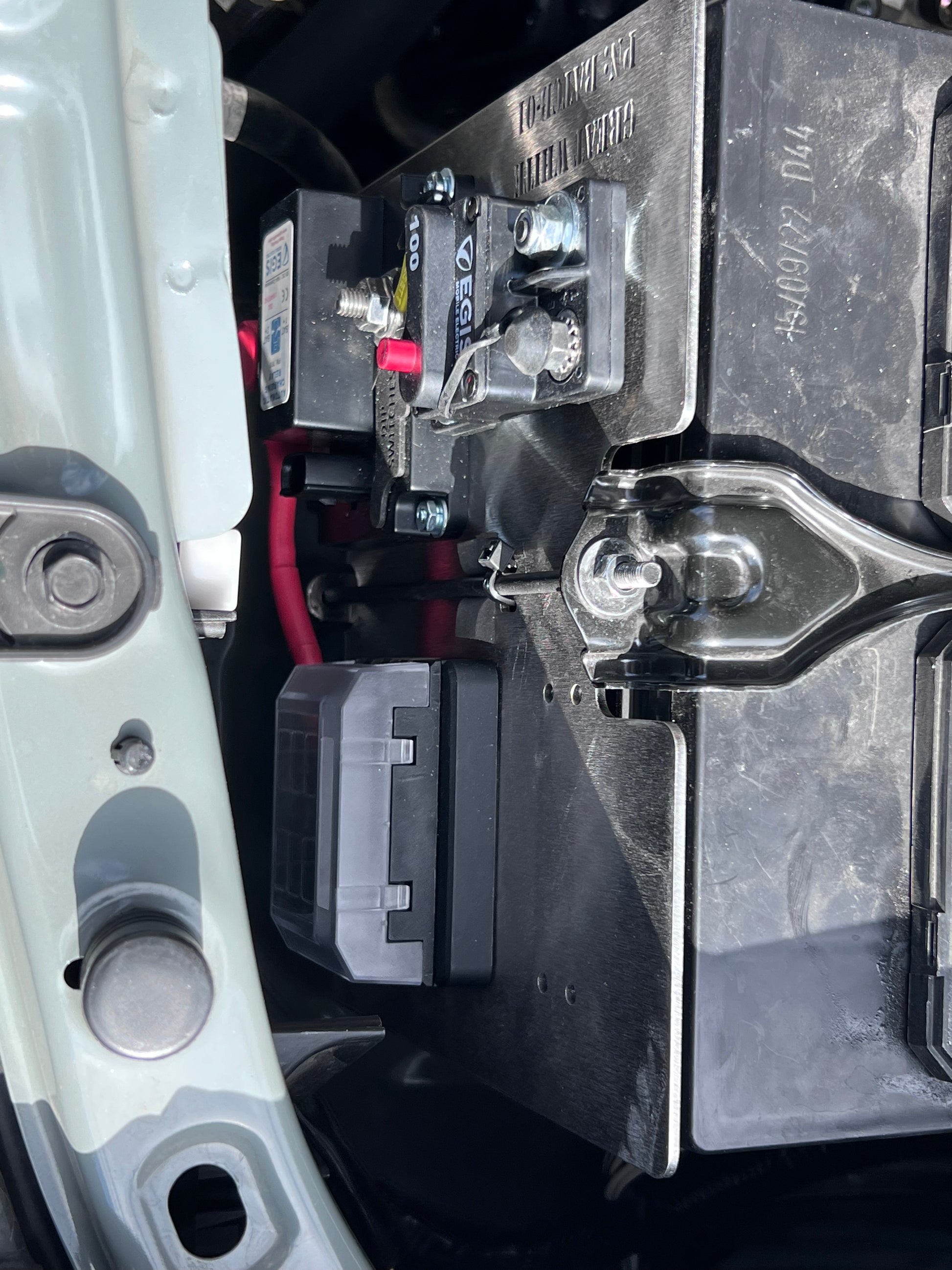

After pre installing your customer supplied accessories, simply remove the battery hold down "J" bolt, slipping it through the hole in the bottom front of the bracket. Then, slip the plate under the plastic battery tray, and reinstall the "J" bolt. Then, fasten the zip tie around the "J" bolt and trim to length. Double check that the "J" bolt has properly and fully seated into the lower slot, and that everything is secure.

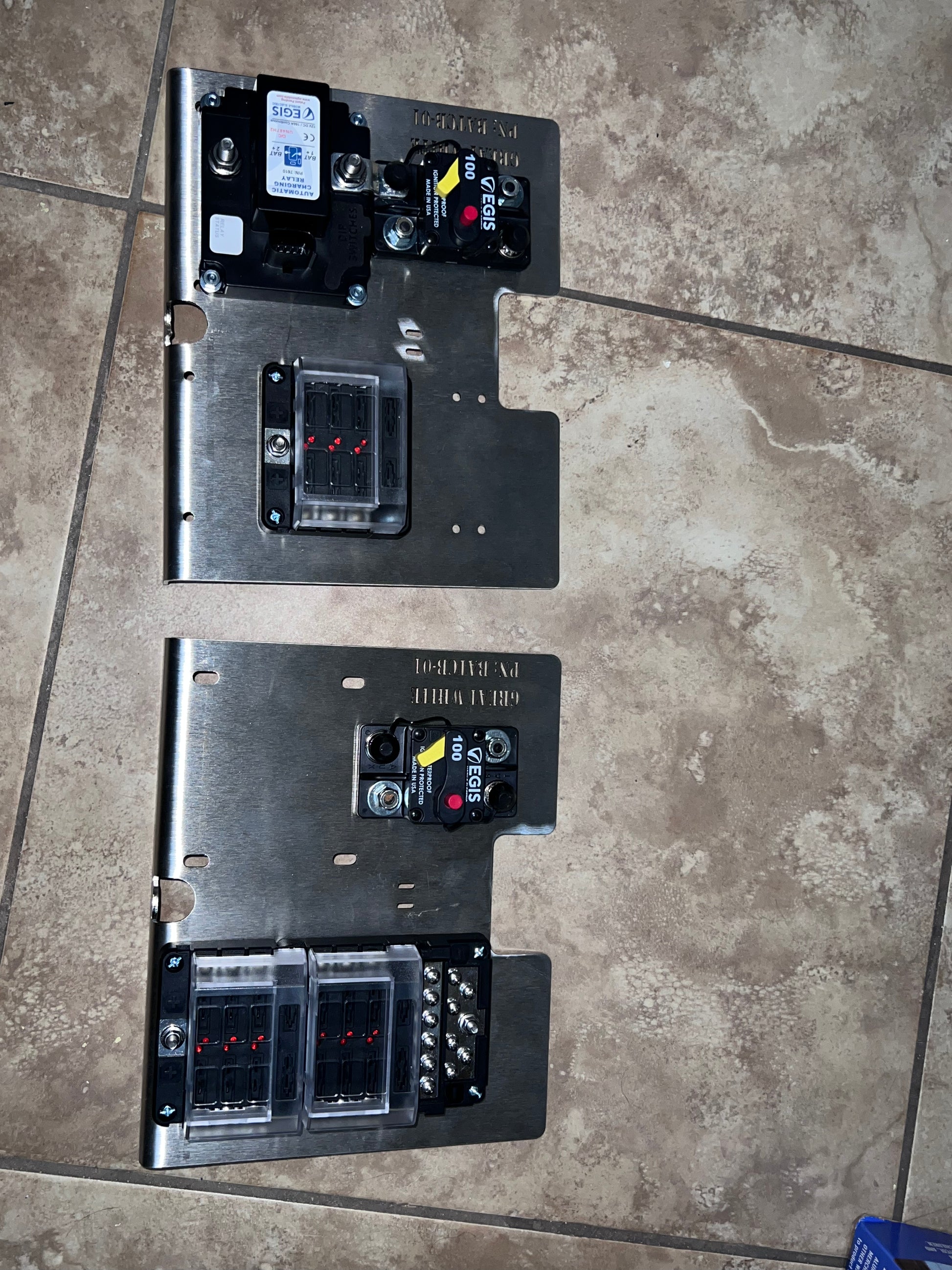

Designed for Egis Mobile RT Series Fuse blocks, Circuit Breaker, and Automatic Charge Relay, it can also be re-drilled to fit multiple other electrical components including Switch Pros SP9100 module.

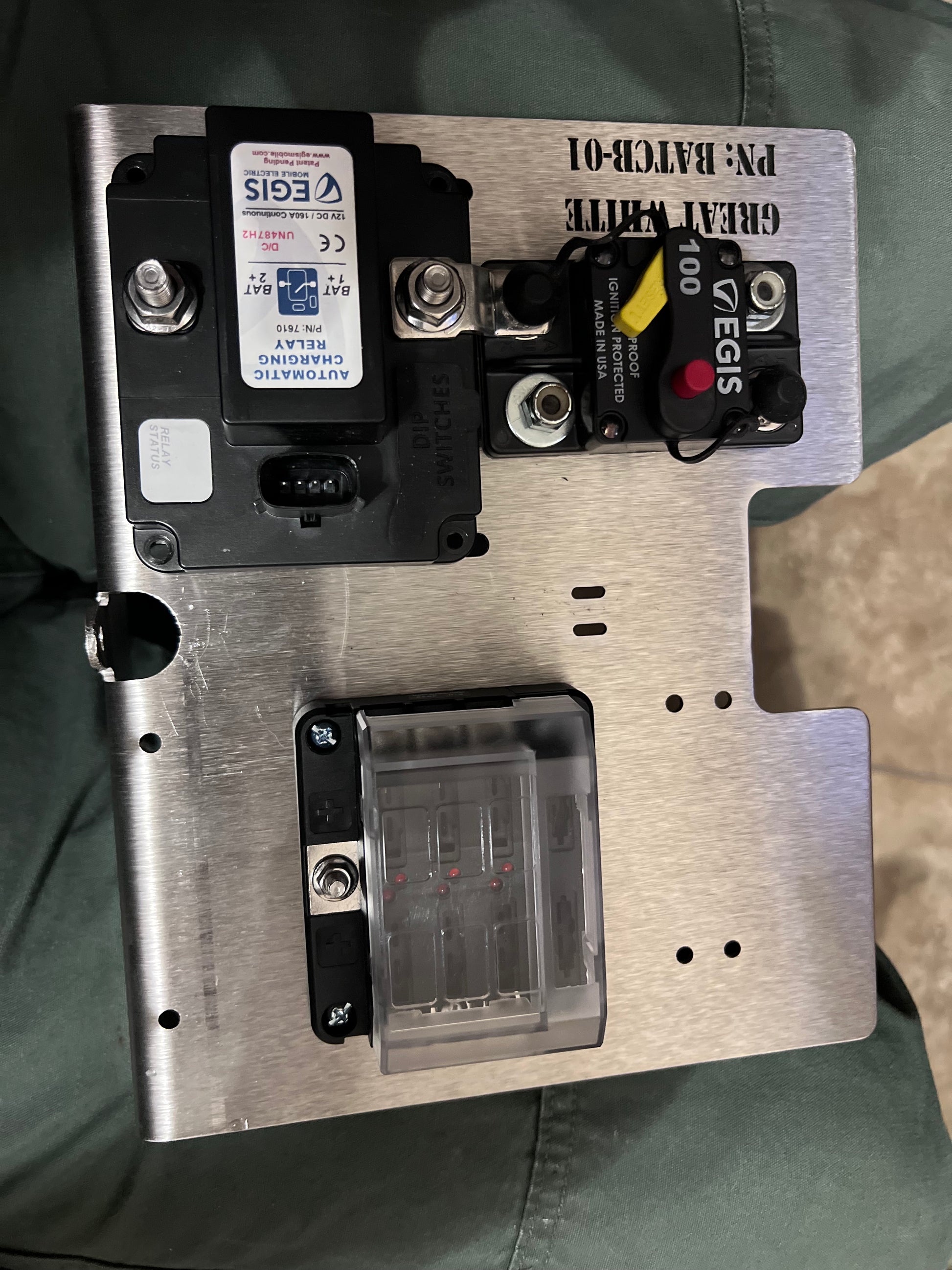

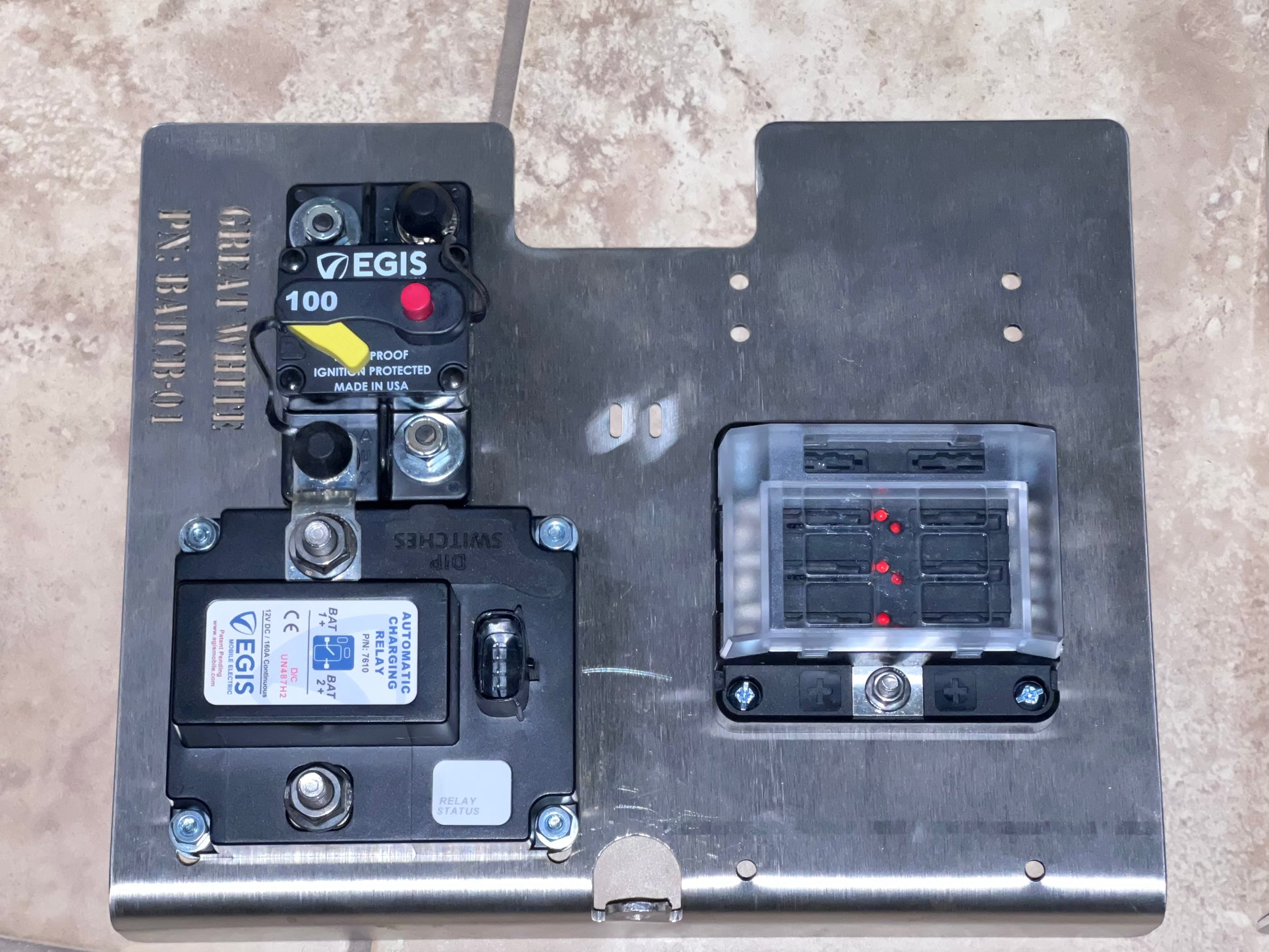

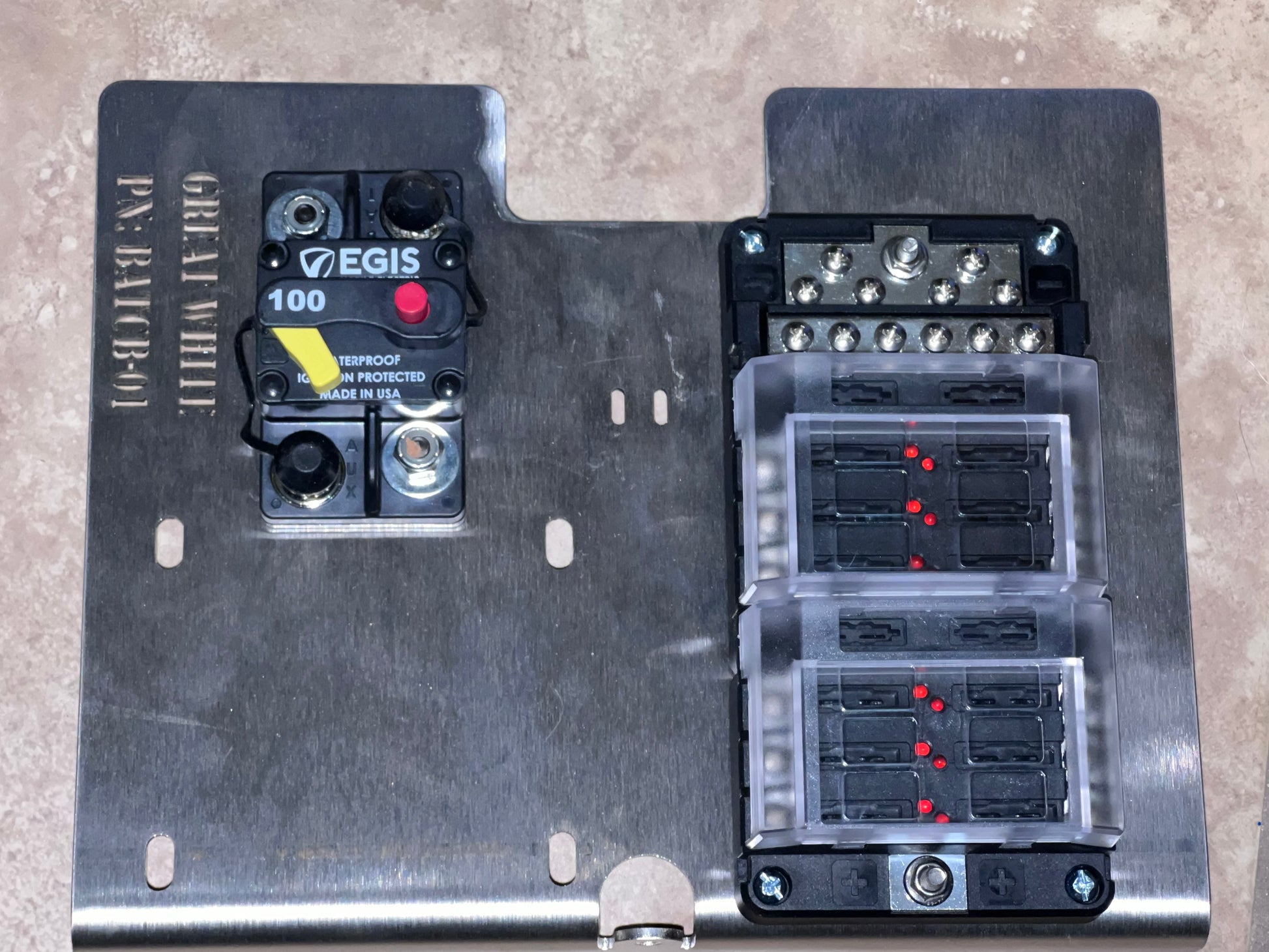

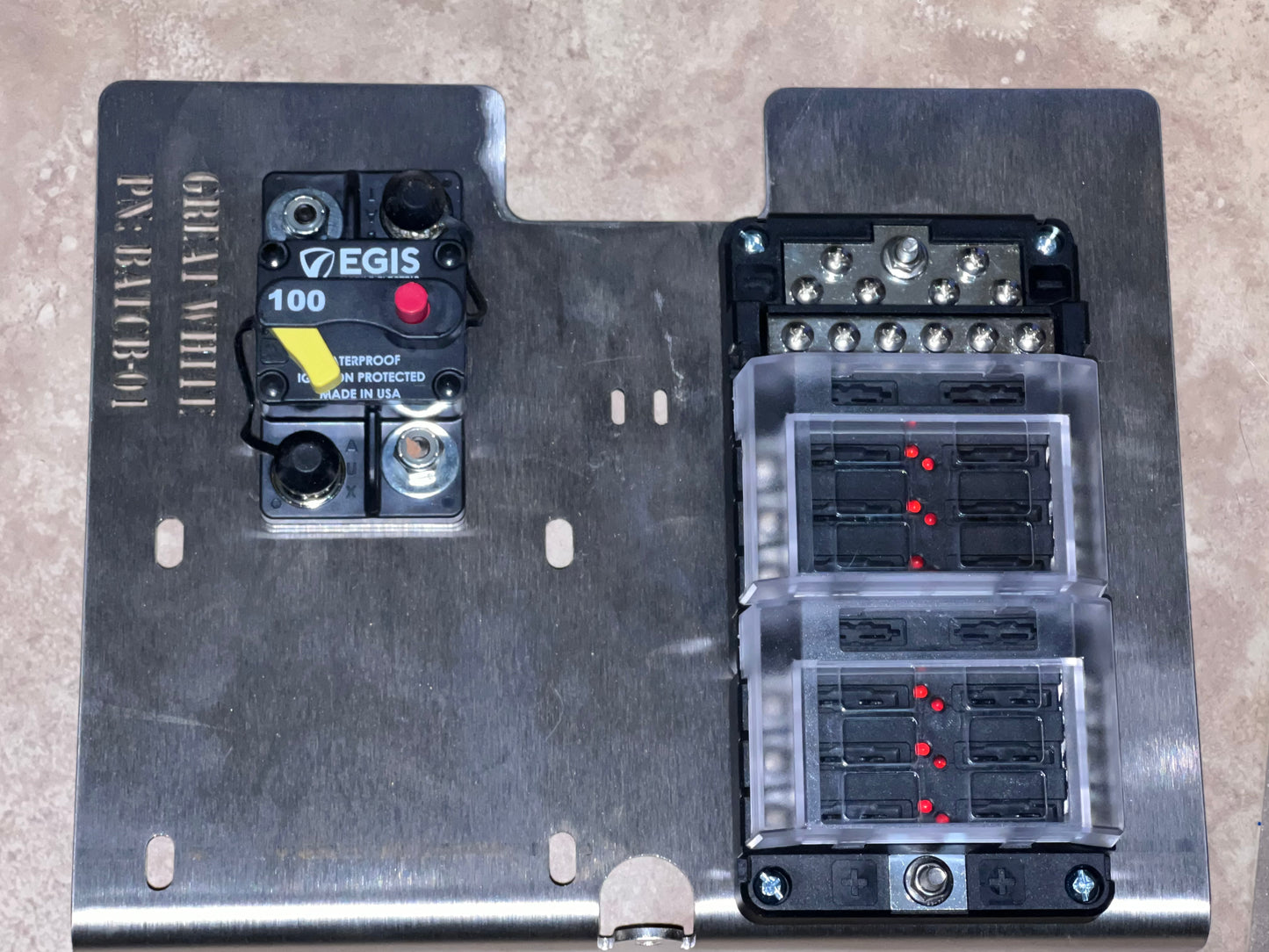

Each side of the plate has a roughly 4.3" wide by 6.5" tall mounting area with the right side drilled for the RT fuse blocks, and the left side drilled for a circuit breaker and Egis Automatic Charging Relay (ACR).
Most surface mount circuit breakers can easily mount in the same holes, and there is plenty of room to safely oversize the holes to mount non standard circuit breakers.
If an ACR is not to be used, there is space for standard relays as well.
All that will be included is the bare mounting plate, and a high temperature zip tie.
